About the Machine
BSH-L20 is a modular vending accessory machine designed to operate together with any Master NEO vending machine.
It provides flexible dispensing space configuration and precise dispensing control through an optional weighing system (up to 18 scales, 7 weight thresholds: 3–20 kg).
The device enables automated product dispensing and precise consumption control.
Its serial expansion capability allows the creation of systems with up to 15 connected devices (including one Master NEO vending machine).
Modular Compartment Configuration
The machine can be expanded to include up to 20 compartments in 6 height variants, allowing precise adjustment of dispensing space.
Each compartment can be individually configured by selecting tray layouts suited to specific product types.

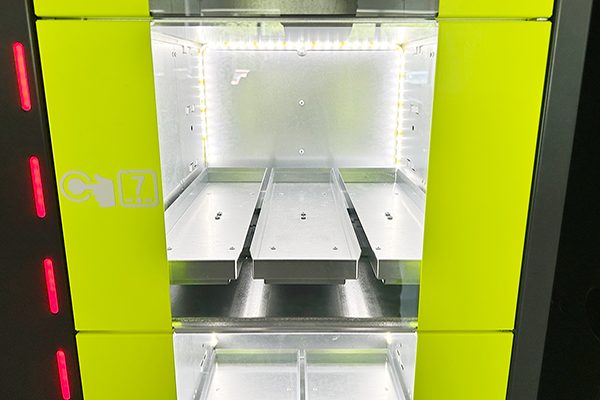

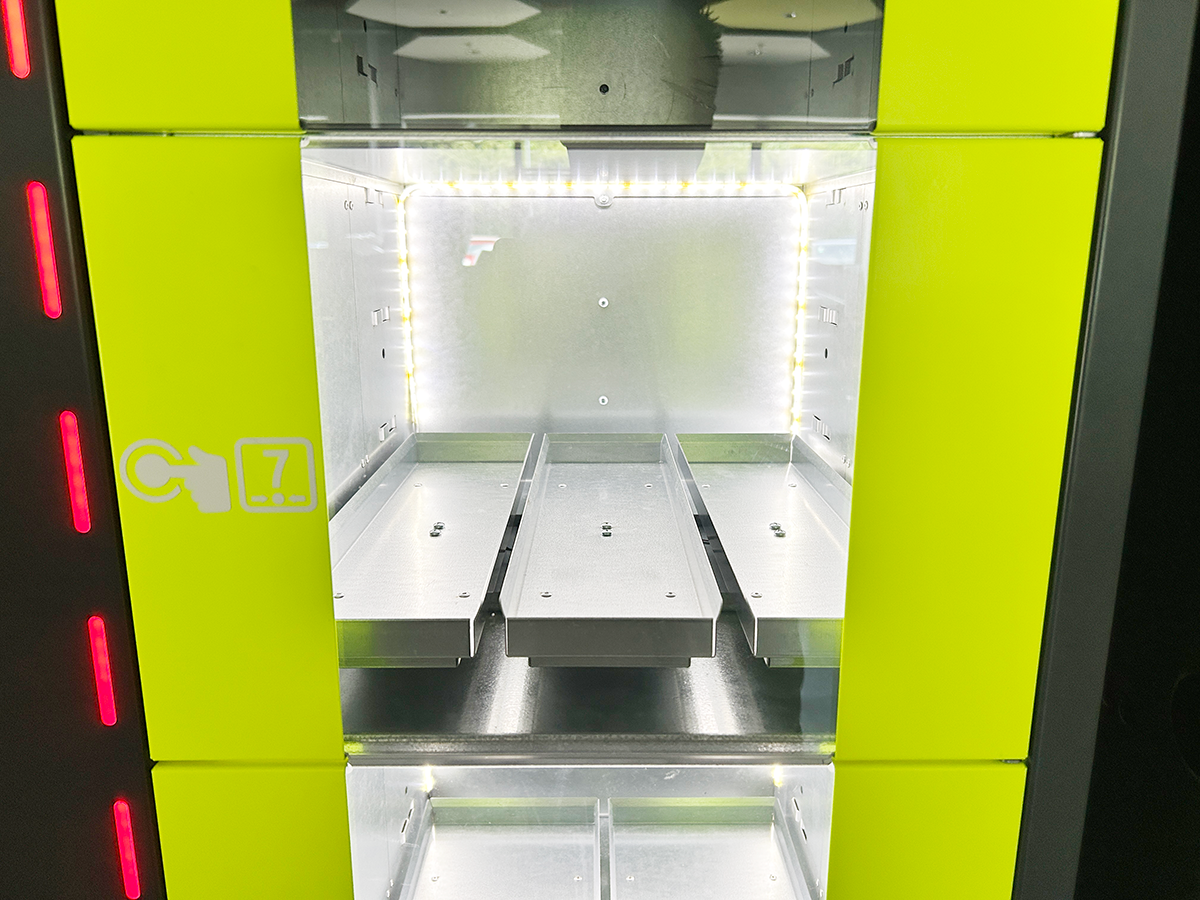

Different products can also be stored within a single compartment on separate weighing trays.
| . | Shelf Config | Tray Width [mm] |
 |
1 scale | 326 |
 |
2 scales | 155 |
 |
3 scales | 98 |
Machine Specification
Max Cell Capacilty: 20
Connectivity: Serial Cable
to master machine.
2 Door options
The L20 offers two door variants tailored to different operational needs:
Full metal door, providing maximum product privacy.
Transparent polycarbonate door, allowing full visual control of contents.
| Details | |
| Height [mm] | 1936 |
| Width [mm] | 548 |
| Depth [mm] | 469 |
| Weight [kg] | 150 |
| Connections | Serial Cable |

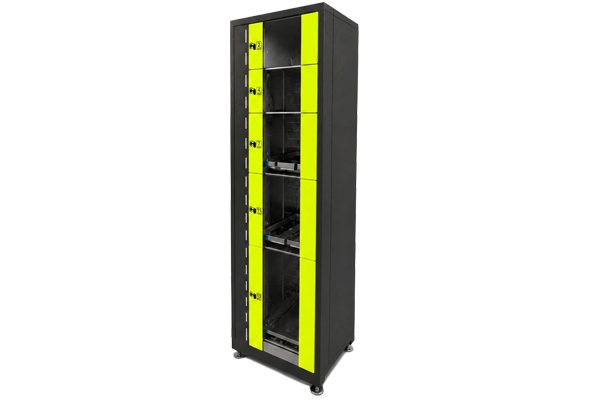

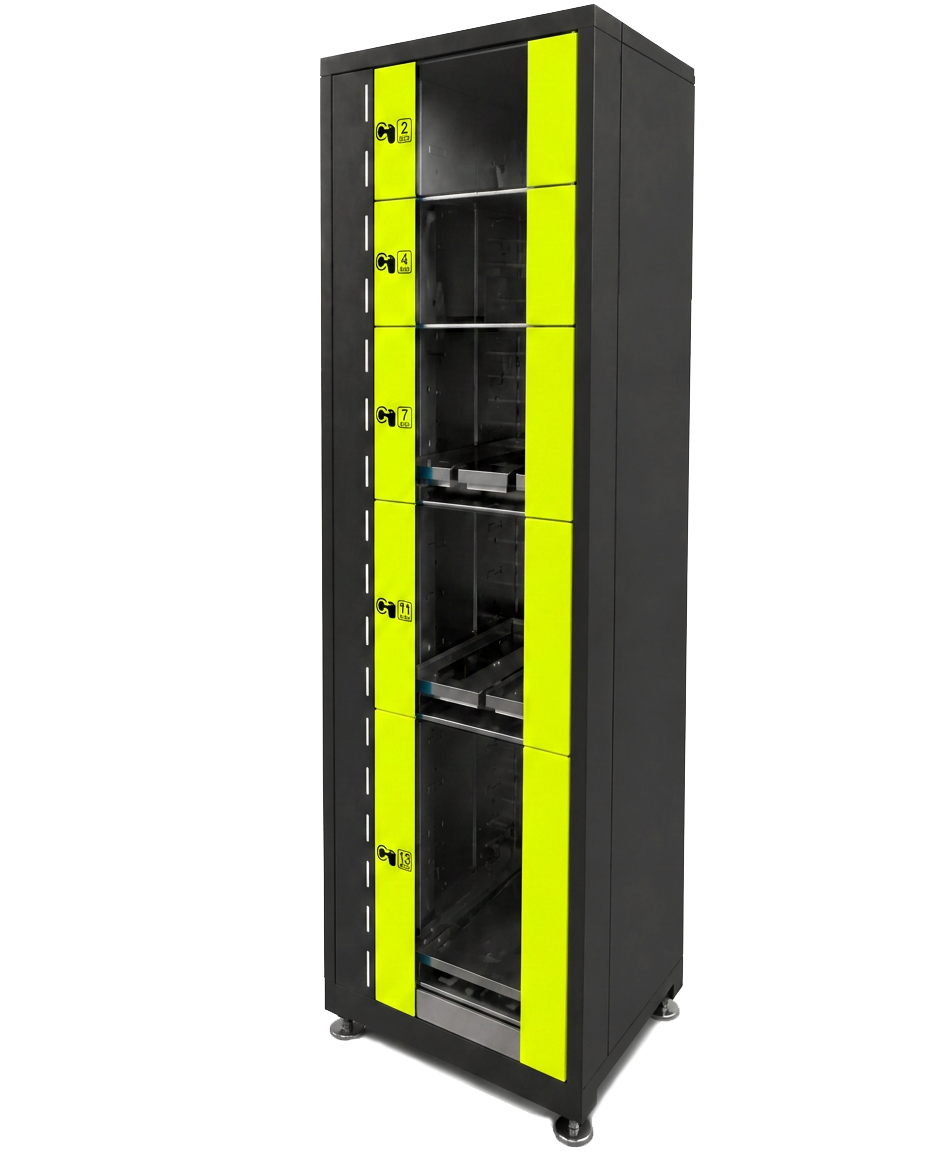

Gallery
Custom Branding
Customised machine painting to customer specification. Per-panel charge for painting to a variety of RAL colours.
Logo branding options available. High quality vinyl graphic logos can be produced and applied to all our vending machines.
Machine full graphical wrapping service available on request.
